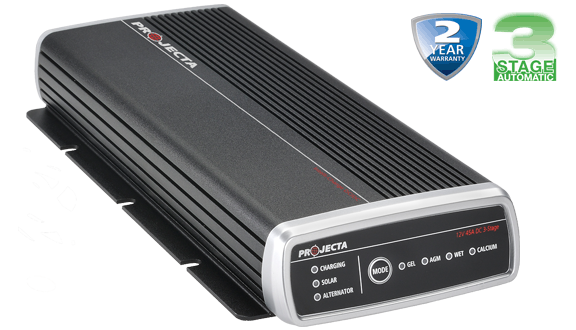

Dual battery charger IDC45

The Intelli-Charge IDC25 is the toughest and most advanced dual battery management system available on the market today. Allowing you to charge your 12V second/auxiliary deep cycle battery on the go, the IDC25 is shock, vibration and dust proof. The unit is also water resistant, making it suitable for both in-vehicle and under-bonnet installation.


Automatic 9-32V 45A 3 Stage DC/Solar Battery Charger

Allows you to charge your 12V second/auxiliary deep cycle battery on the go, simultaneously from solar and alternator (9-32V) inputs. Provides an advanced 3 stage charging process to produce a safe and comprehensive charge, a must for deep cycle batteries.




 Dual Charging Modes / Dual Input Operation  Simultaneous dual battery charging from both solar and alternator inputs

Dual Charging Modes / Dual Input Operation

Simultaneous dual battery charging from both solar and alternator inputs

 Engine Bay Installation  Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C

Engine Bay Installation

Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C


 Multi-Chemistry  Set the charging profile to suit battery chemistry type: Wet, Calcium AGM or Gel

Multi-Chemistry

Set the charging profile to suit battery chemistry type: Wet, Calcium AGM or Gel

 Installation guide

Installation guide



 Caravan installation  Combines your solar and vehicle’s power to deliver a comprehensive multi-stage charge ensuring longer battery life and preformance.

Caravan installation

Combines your solar and vehicle’s power to deliver a comprehensive multi-stage charge ensuring longer battery life and preformance.

 4WD installation  A sophisticated dual battery charger engineered for in-vehicle or under bonnet installation on vehicles fitted with traditional or smart alternators.

4WD installation

A sophisticated dual battery charger engineered for in-vehicle or under bonnet installation on vehicles fitted with traditional or smart alternators.



SPECIFICATIONS

PART NO

IDC45

CHARGE TYPE

3 Stage

ALTERNATOR INPUT VOLTAGE

9-32Vdc

MAX SOLAR INPUT

28Vdc, 693W

OUTPUT CURRENT

Input 9-11Vdc 37A,
Input 11-32Vdc 45A

BACK DRAIN ON AUX BATTERY

<5mA

CHARGER CONTROL

Gel: 14.1V,
AGM: 14.4V
Wet: 14.7V,
Calcium: 15.4V

BATTERY CAPACITY

150-600Ah

BATTERIES SUPPORTED

Gel, AGM, Wet & Calcium

SMART ALTERNATOR

12V: Turn On: 12.2-20V
24V: Turn On: 24.4-32V
Turn Off: <11.9V
Turn Off: <24V

CONVENTIONAL ALTERNATOR

12V: Turn On: 13.4-20V
24V: Turn On: 26.8-32V
Turn Off: <12.8V
Turn Off: <25.6V

OPERATING TEMPERATURE

-10°C to +80°C
