Dual battery charger IDC25


Automatic 9-32V 25A 3 Stage DC/Solar Battery Charger

Allows you to charge your 12V second/auxiliary deep cycle battery on the go, simultaneously from solar and alternator (9-32V) inputs. Provides an advanced 3 stage charging process to produce a safe and comprehensive charge, a must for deep cycle batteries.

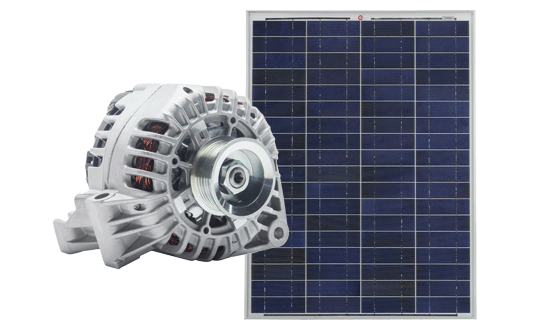

Dual Charging Modes / Dual Input Operation Simultaneous dual battery charging from both solar and alternator inputs

Dual Charging Modes / Dual Input Operation

Simultaneous dual battery charging from both solar and alternator inputs

Engine Bay Installation Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C

Engine Bay Installation

Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C


Multi-Chemistry Set the charging profile to suit battery chemistry type: Wet, Calcium AGM or Gel

Multi-Chemistry

Set the charging profile to suit battery chemistry type: Wet, Calcium AGM or Gel

Installation guide

Installation guide



Caravan installation Combines your solar and vehicle’s power to deliver a comprehensive multi-stage charge ensuring longer battery life and preformance.

Caravan installation

Combines your solar and vehicle’s power to deliver a comprehensive multi-stage charge ensuring longer battery life and preformance.

4WD installation A sophisticated dual battery charger engineered for in-vehicle or under bonnet installation on vehicles fitted with traditional or smart alternators.

4WD installation

A sophisticated dual battery charger engineered for in-vehicle or under bonnet installation on vehicles fitted with traditional or smart alternators.



SPECIFICATIONS

PART NO

IDC25

CHARGE TYPE

3 Stage

ALTERNATOR INPUT VOLTAGE

9-32Vdc

MAX SOLAR INPUT

23Vdc, 385W

OUTPUT CURRENT

Input 9-11Vdc 20A,
Input 11-32Vdc 25A

BACK DRAIN ON AUX BATTERY

9.5-10.5mA

CHARGER CONTROL

Gel: 14.1V,
AGM: 14.4V
Wet: 14.7V,
Calcium: 15.4V

BATTERY CAPACITY

75-300Ah

BATTERIES SUPPORTED

Gel, AGM, Wet & Calcium

SMART ALTERNATOR

12V: Turn On: 12.2-20V
24V: Turn On: 24.4-32V
Turn Off: <11.9V
Turn Off: <24V

CONVENTIONAL ALTERNATOR

12V: Turn On: 13.4-20V
24V: Turn On: 26.8-32V
Turn Off: <12.8V
Turn Off: <25.6V

OPERATING TEMPERATURE

-10°C to +80°C
