PRO-Wave Advantage
Pro-Wave inverters are designed, engineered and tested in Australia to provide performance in the toughest conditions. The Pro-Wave range utilises pure sine wave technology, which more closely replicates the 240V mains power found at home.
Pro-Wave pure sine wave inverters have been specifically designed and built to deliver the next level of clean, reliable power, for those looking for greater performance over entry level modified sine wave inverters. Offering exceptional reliability, Pro-Wave is the ideal companion for all adventures, whether for the avid traveller taking their household comforts to remote destinations, or the home handyman in need of good, clean power to run sophisticated power tools when mains power isn’t available.
Features & BENEFITS
REMOTE CONTROL
Every Pro-Wave inverter comes with a sleek LCD display remote, which allows you to mount the unit discreetly next to the main battery, out-of-sight. Additionally, this clever remote lets you easily read load power and input voltage while conveniently switching the inverter on and off remotely.
Greater Starting Power
Pro-Wave inverters deliver far greater start up power than equivalent modified sine wave inverters to effortlessly run more of your favourite appliances. The range is engineered to run at 120% surge for 10 minutes and 200% for 1 second.
Fully Isolated Design
Safety is paramount around 240V, and especially with inverters, which is why Projecta fully electrically isolates the DC (and therefore battery posts, vehicle chassis, etc., from the 240V AC circuit). This grants users total peace of mind, which means all they need to think about is what they want to power and where.
Superior Noise Filtering
By producing ultra clean power with greatly reduced interference, mirroring that of the power expected from household 240V outlets, the Pro-Wave range prevents any electrical noise/static from being produced when running sensitive appliances.
What is Pure Sine Wave?
There are two different types of inverters; modified sine wave and pure sine wave. The difference between the two is how closely the output replicates mains power.
The process used to create the power from a pure sine wave inverter is more complex and therefore they are more costly. However, they are best for use on sensitive electrical appliances due to their ultra clean power delivery.
Watch television without static, listen to an AM radio, play favourite games on an XboxTM, PlaystationTM or SwitchTM and run a fluorescent light, all of which may not operate properly on a modified sine wave inverter.
PURE VS MODIFIED SINE WARE
MAINS POWER (SINE WAVE)

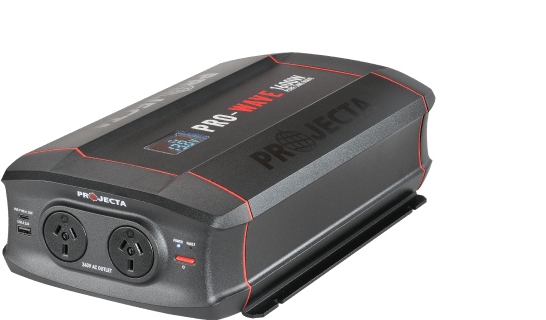

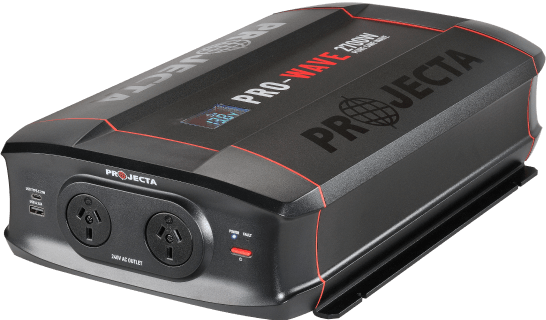

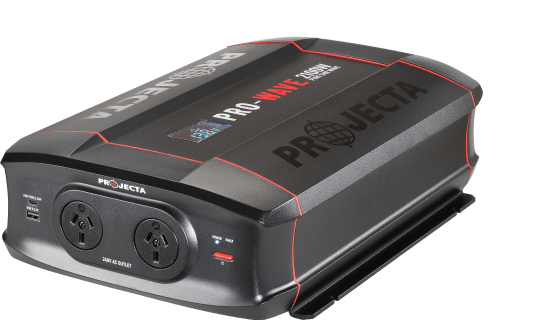

PRO-Wave Range
Delivers ultra clean power.
Pro-Wave pure sine wave inverters have been specifically designed and built to deliver the next level of clean, reliable power, for those looking for greater performance over entry level modified sine wave inverters.
Offering exceptional reliability, Pro-Wave is the ideal companion for all adventures, whether for the avid traveller taking their household comforts to remote destinations, or the home handyman in need of good, clean power to run sophisticated power tools when mains power isn’t available.
GOING OFF-GRID?
Not sure which Pro-Wave inverter is right for you? Download our latest printable brochure now to compare all 6 models in more detail, even while you’re offline.
PRO-Wave Reference Guide
| Part Number | Input | Output Power | Ideal Battery Size | Minimum Battery Size | Run Time* |
|---|---|---|---|---|---|
|
Part Number
PW500
|
Input12V |
Output Power
500W Continuous
1000W Peak |
Ideal Battery Size35Ah and above | Minimum Battery Size25Ah | Run Time*2.5 Hours |
|
Part Number
PW1100
|
Input12V |
Output Power
1100W Continuous
2200W Peak |
Ideal Battery Size75Ah and above | Minimum Battery Size55Ah | Run Time*5.5 Hours |
|
Part Number
PW1600
|
Input12V |
Output Power
1600W Continuous
3200W Peak |
Ideal Battery Size105Ah and above | Minimum Battery Size80Ah | Run Time*8 Hours |
|
Part Number
PW2100
|
Input12V |
Output Power
2100W Continuous
4200W Peak |
Ideal Battery Size110Ah and above | Minimum Battery Size105Ah | Run Time*10 Hours |
|
Part Number
PW2100-24
|
Input24V |
Output Power
2100W Continuous
4200W Peak |
Ideal Battery Size70Ah and above | Minimum Battery Size55Ah | Run Time*10 Hours |
|
Part Number
PW2700
|
Input12V |
Output Power
2700W Continuous
5400W Peak |
Ideal Battery Size180Ah and above | Minimum Battery Size135Ah | Run Time*14 Hours |
* Run Time: 100W globe on minimum battery.
PRO-Wave SELECTION GUIDE
No matter the application or job at hand, Projecta has the inverter to suit.
Not limited to these applications. IMPORTANT – Always check the inverter is matched to the power requirements of the appliance.
