PM100-BTJ System
The Intelli-Jay PM100-BTJ works hard behind the scenes so you can focus on the real priorities: your adventure, your time away and your relaxation. Set and forget. Key information is here when you need it: view vehicle and house battery levels, water and waste tank levels, charging and load status from the comfort of your phone or tablet using the Bluetooth powered smart app. When it’s time for lights out, turn it all off from your bedside with a simple touch of the “PWR” button in the app. Rest easy knowing the Low Voltage Disconnect won’t leave you with a flat battery. Be confident that when you plug in to mains power, your battery is getting most efficient charge possible thanks to Intelli-Jay’s advanced 5 stage charging system.
Features
- 5 stage, 12V 30A smart charger (AGM, GEL, WET and lithium batteries)
- 35A (continuous) power supply
- 100A (peak), 60A (continuous) Voltage Sensitive Relay
- Bluetooth® enabled app allows advanced remote monitoring and switching system load on/off via smart phone
- Water level monitoring: 2 tanks + waste tank
- Battery low voltage protection/disconnect
- 10 x fused DC outputs (2 x 15A, 8 x 10A)
- Thermal-controlled fan
Download the app
Android App IOS App

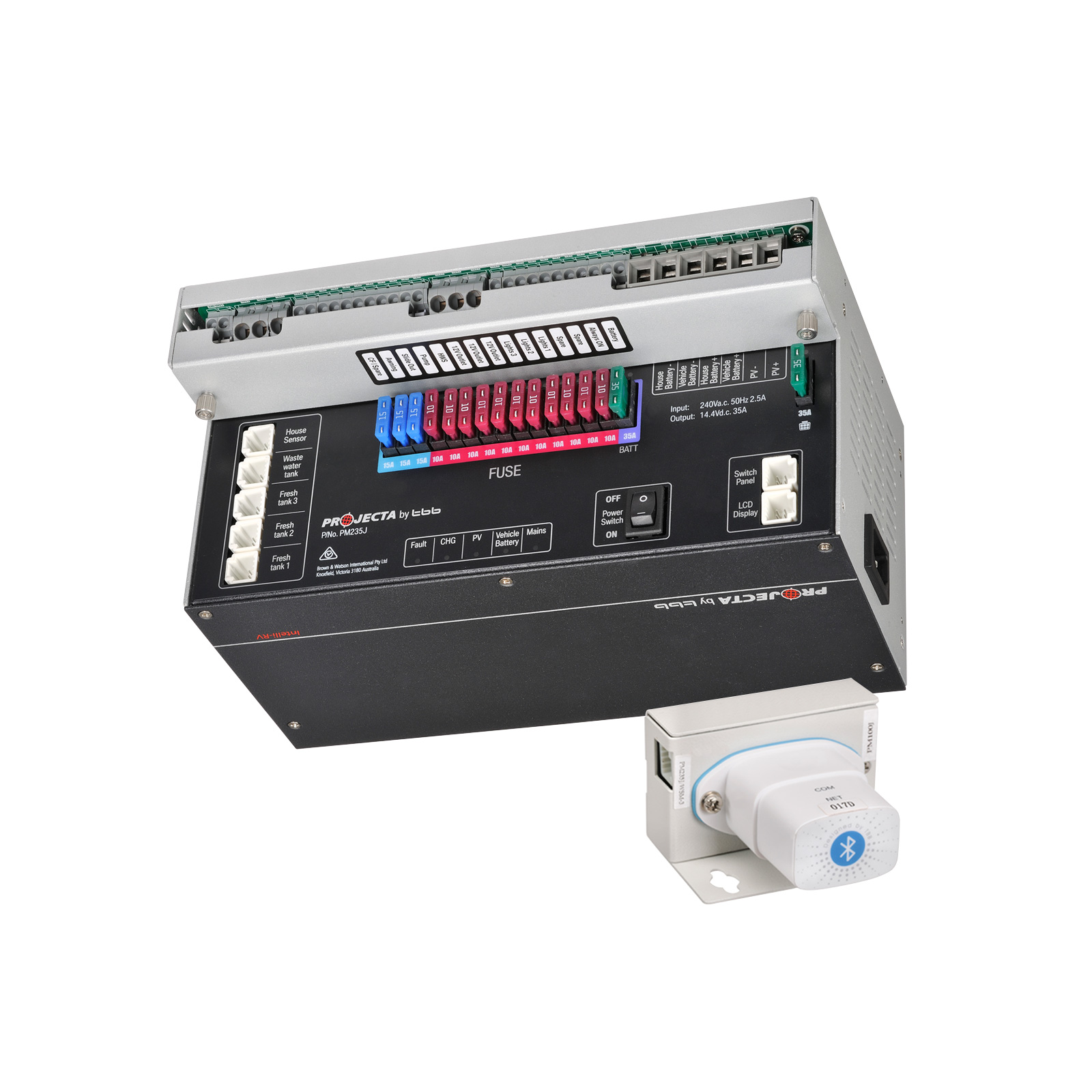

PM235J-NODE System
Incorporating a 30A PWM solar charge controller, the Intelli-Jay PM235J-NODE expands on the ‘set and forget’ mantra of the PM100-BTJ, covering the needs of those with solar power fitted. PM235J-NODE will cleverly take charge from both solar panels as well as your vehicle alternator for optimum charging efficiency. In addition, the Bluetooth smart app can monitor up to 4 water and waste tank levels, plus advanced state of charge, charging input source, load usage information and temperature. It also features separate on/off buttons for your Hot Water System and Water Pump, so you can turn them on/off without using the whole system “PWR” on/off button.
Features
- 5 stage, 12V 30A smart charger (AGM, GEL, WET and lithium batteries)
- 30A (800W) PWM solar charge controller
- 35A (continuous) power supply
- 100A (peak), 60A (continuous) Voltage Sensitive Relay
- Bluetooth® enabled app allows advanced remote monitoring and switching of hot water system, water pump and system load on/off via smart phone
- Water level monitoring: 3 tanks + waste tank
- Battery low voltage protection/disconnect
- 14 x fused DC outputs (3 x 15A, 11 x 10A)
- Thermal-controlled fan
Download the app
Android App IOS App
PM200-BTJ System
Convenience when and where you need it. The Intelli-Jay PM200-BTJ shares the same specifications as the PM235J-NODE, but comes equipped with a remote LCD screen that allows you to monitor and control the system from where it is mounted, without needing to use the Bluetooth smart app. Of course, if you prefer to use your phone or tablet, you can – the wonderfully clear LCD screen syncs brilliantly with the smart app to give you a wealth of system information from either source. It also includes touch buttons like the app, for remote operation from the LCD, which is dimmable so you don’t end up with an unintended night light.
Features
- 5 stage, 12V 30A smart charger (AGM, GEL, WET and lithium batteries)
- 30A (800W) PWM solar charge controller
- 35A (continuous) power supply
- 100A (peak), 60A (continuous) Voltage Sensitive Relay
- Bluetooth® enabled app allows remote monitoring and switching of hot water system, water pump and system load on/off via smart phone.
- LCD monitor for remote control and monitoring without using phone
- Water level monitoring: 3 tanks + waste tank
- Battery low voltage protection/disconnect
- 14 fused DC outputs (3 x 15A, 11 x 10A)
- Thermal-controlled fan
Download the app
Android App IOS App
PM300-BTJ System
PM300-BTJ is a power management system designed for use in caravans or motor homes. This systems allow for easy installation and a user-friendly interface. The PM300-BTJ system comes with the same PM335J transformer unit, which the circuits in the caravan or motor home are centrally wired to. This transformer features built-in battery charger, power supply, fused distribution blocks, MPPT solar charge controller, voltage charging relay (VSR), low voltage disconnect (LVD), water pump controller, hot water system controller, water tank indicator and battery monitoring..
Features
- Smart battery charger 12V 35A (30A for charging current)
- Multi stage adaptive charging algorithm
- Active Power Factor Correction (PFC) charging
- Temperature compensation charging
- Voltage compensation charging
- Solar charge controller (MPPT), 30A
- 14 built in fused outputs
- Charging from Alternator at 12V 60A - 60A continuously, 100A 30mins
- Low battery voltage protection
Download the app
Android App IOS App
PM210-BT4J System
PM210-BT4J System
The Intelli-Jay PM210-BT4J enhances your mobile living experience by integrating advanced management of your vehicle’s electrical systems. Effortlessly monitor and control your vehicle's power system, water levels, and more through the Bluetooth-enabled PMD-BT4J Monitor. Whether settling down for the night or managing your utilities remotely, the PM210-BT4J ensures everything is a touch away with its user-friendly interface and robust control features, including a low voltage disconnect for battery protection and efficient power management through its sophisticated charging protocols.
Features
- 12V 35A Smart Charger: Optimized for AGM, GEL, WET, and LiFePO4 batteries, ensuring the most efficient charge.
- 35A Continuous Power Supply: Reliable power without interruption.
- 100A Peak Voltage Sensitive Relay: Robust peak current handling for high-demand applications.
- Bluetooth® Enabled: Advanced remote monitoring and control via a smartphone app.
- Multiple Tank Monitoring: Supports up to 3 water tank probes, enhancing utility management.
- Low Voltage Protection: Automatic disconnection to preserve battery life.
- 14 Fused DC Outputs: Versatile power distribution tailored to diverse needs.
- Thermal-Controlled Fan: Maintains optimal operating temperature for safety and efficiency.
PM210-BT4J Manual
PM310-BT4J System

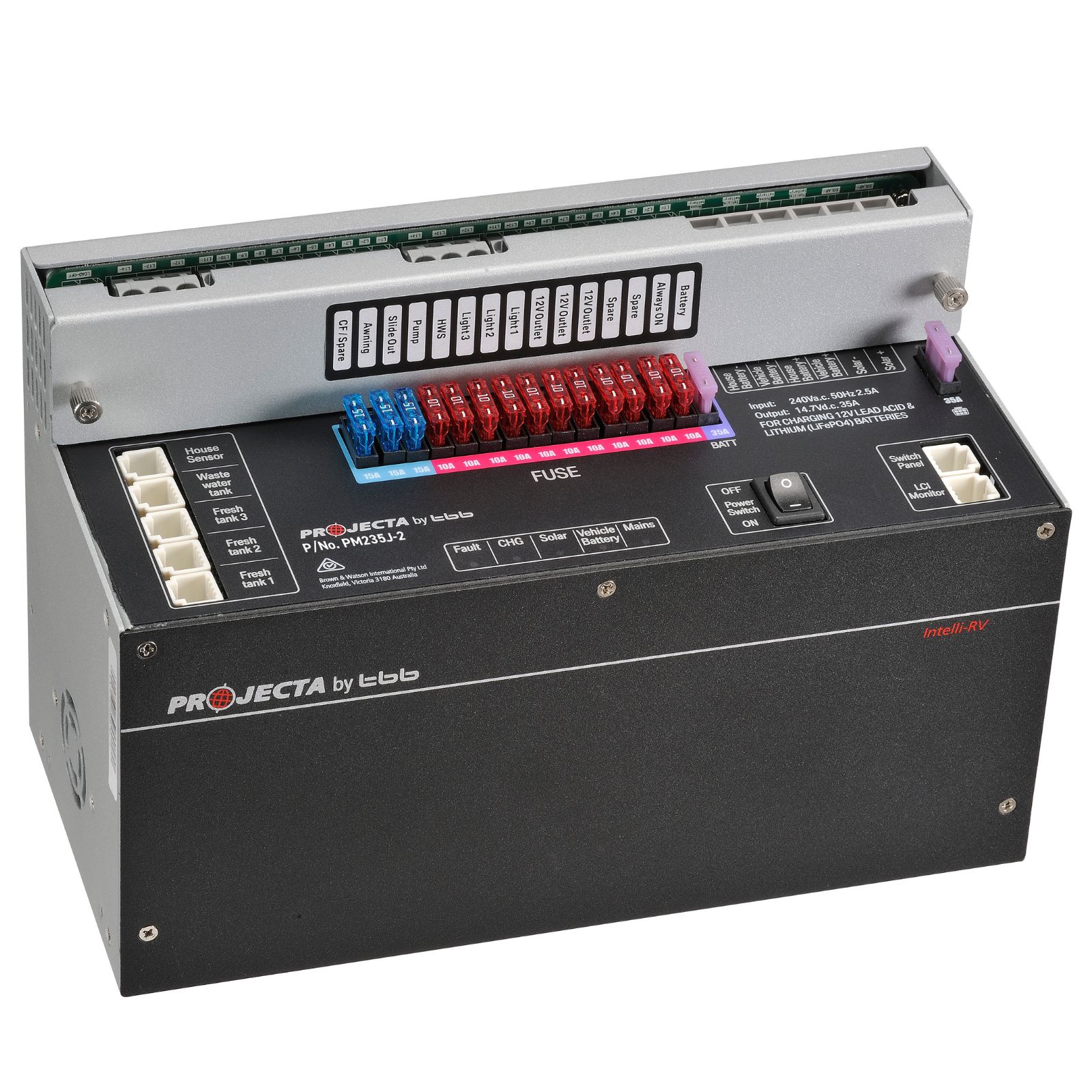

The PM310-BT4J is a comprehensive power management system designed for optimal control and efficiency in caravans and motor homes. It simplifies the management of power, water levels, and battery status through its advanced PM335J-2 Transformer Unit, providing robust monitoring and real-time adjustments via the Bluetooth-enabled PMD-BT4J Monitor.
Features
- Smart 12V 35A battery charger, supporting AGM, GEL, WET, and LiFePO4 batteries.
- Integrated MPPT solar charge controller, optimizing solar energy with up to 30A charging.
- Advanced remote monitoring and control capabilities through a mobile app.
- Multiple power inputs for flexible energy management across AC, solar, and vehicle sources.
- Robust low voltage disconnect to protect your battery.
- 14 fused outputs with thermal protection and precise battery management.
- Designed for easy installation in a variety of vehicle configurations.
- Remote access for system monitoring and updates via mobile connectivity.
PM310-BT4J Manual
PMDC-30 DC-DC Charger (Intelli-Jay Integration)
The PMDC-30 is a 30 Amp output DC to DC charger, designed to be integrated with the Intelli-Jay battery management system. It comes with stripped & tinned, labelled input and output wiring, for ease of installation.
Features
- Non-isolation design with max efficiency 96%.
- Euro-6 engine (Smart alternator) compatible
- Built in multi-stage charging algorithm.
- Built-in automatic temperature and voltage compensated charging
- Plug and Play for easy installation
- Built-in fuse protection
- Built-in Heat Sink for cooling
- RS485 communication port for future options and upgrades
- Protection against input/output over voltage, output over current, output short circuit, internal over temperature, battery over temperature
PMDC-30 Manual
Jayco Off Grid X Power System with Bluetooth Monitor
A Complete 2000W power solution taking care of all your power needs, lighting and water requirements, connected to a colour display with Bluetooth so you can check and control the system from your phone.
Features
- Inverter & Grid Power ( 3000W inverter/Charger with 180A charging)
- Lithium Battery (400Ah)
- Bluetooth Monitor ( 7" Colour monitor)
- Multiple Charging Options (30A DC to DC charging, 40 MPPT Solar)
- Adaptable Modules ( Water and Lighting)
Jayco Off Grid X Manual
Download Software Update -
FOR JAYCO
IG2-BT7 Mobile Power System with Bluetooth Monitor
The 3000W powerhouse system, like the IG2-BT7, is full of features and with it's upgraded 60Amp DCDC Charger it can provide the next level of faster charging on the road.
Features
- Inverter & Grid Power ( 2000W inverter/Charger with 120A charging)
- Lithium Battery (200Ah)
- Bluetooth Monitor ( 7" Colour monitor)
- Multiple Charging Options (30A DC to DC charging, 40 MPPT Solar)
- Adaptable Modules ( Water and Lighting)
IG2/IG3-BT7 Manual
Download Software Update -
FOR JAYCO
