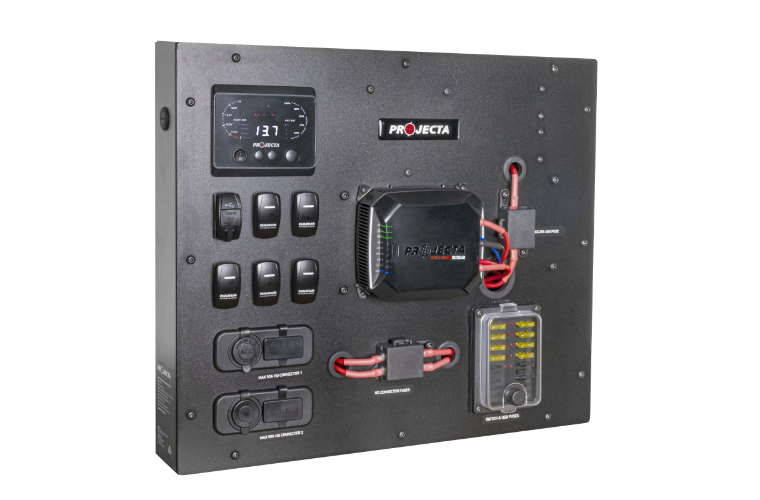

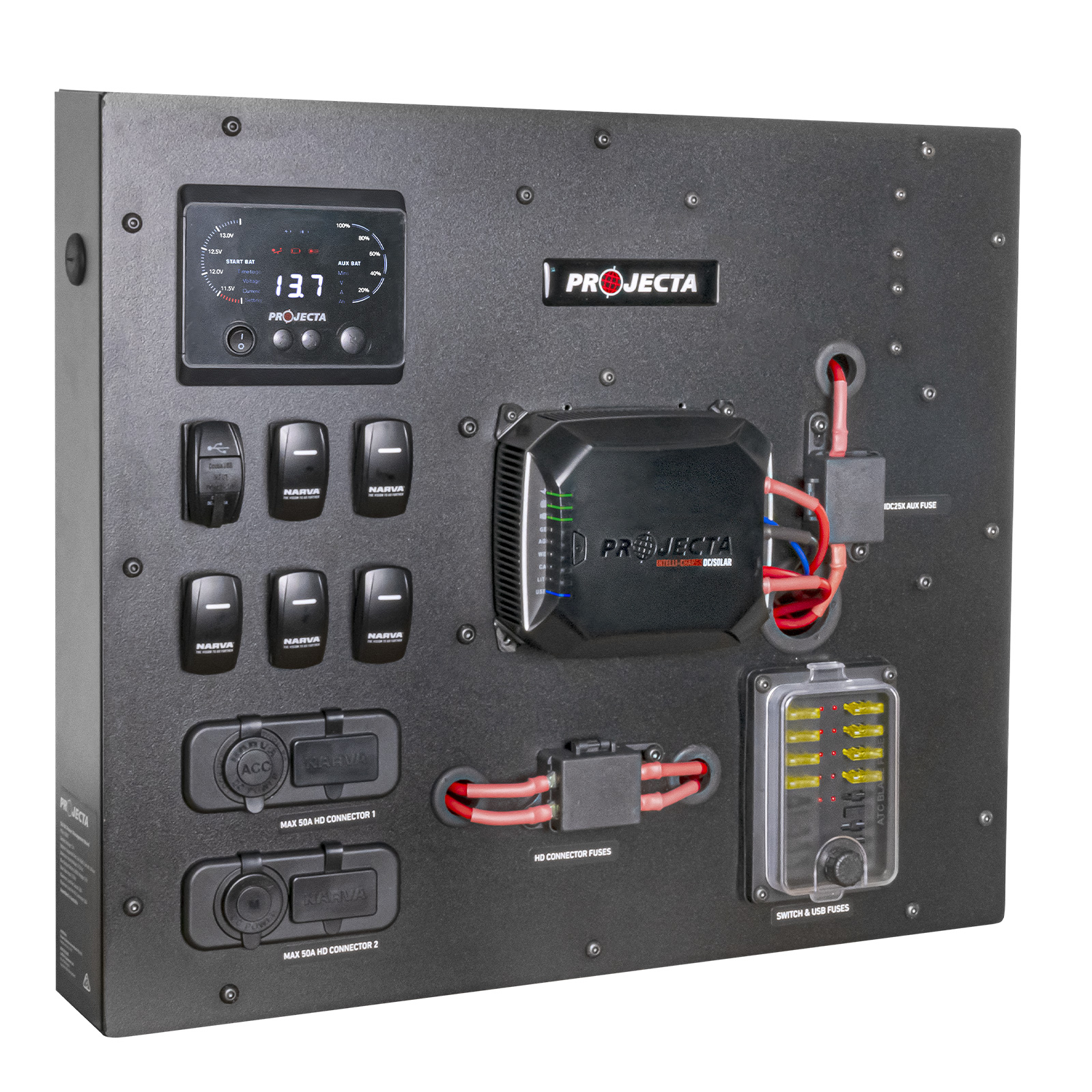

12V DC Power Managment Board
Part No. ICBDC
A premium pre-built all-in-one DC power board, ideal for ute canopies and tray bodies. For ease of fitment, the unit is pre-wired enabilling a quick and professional installation.
Features

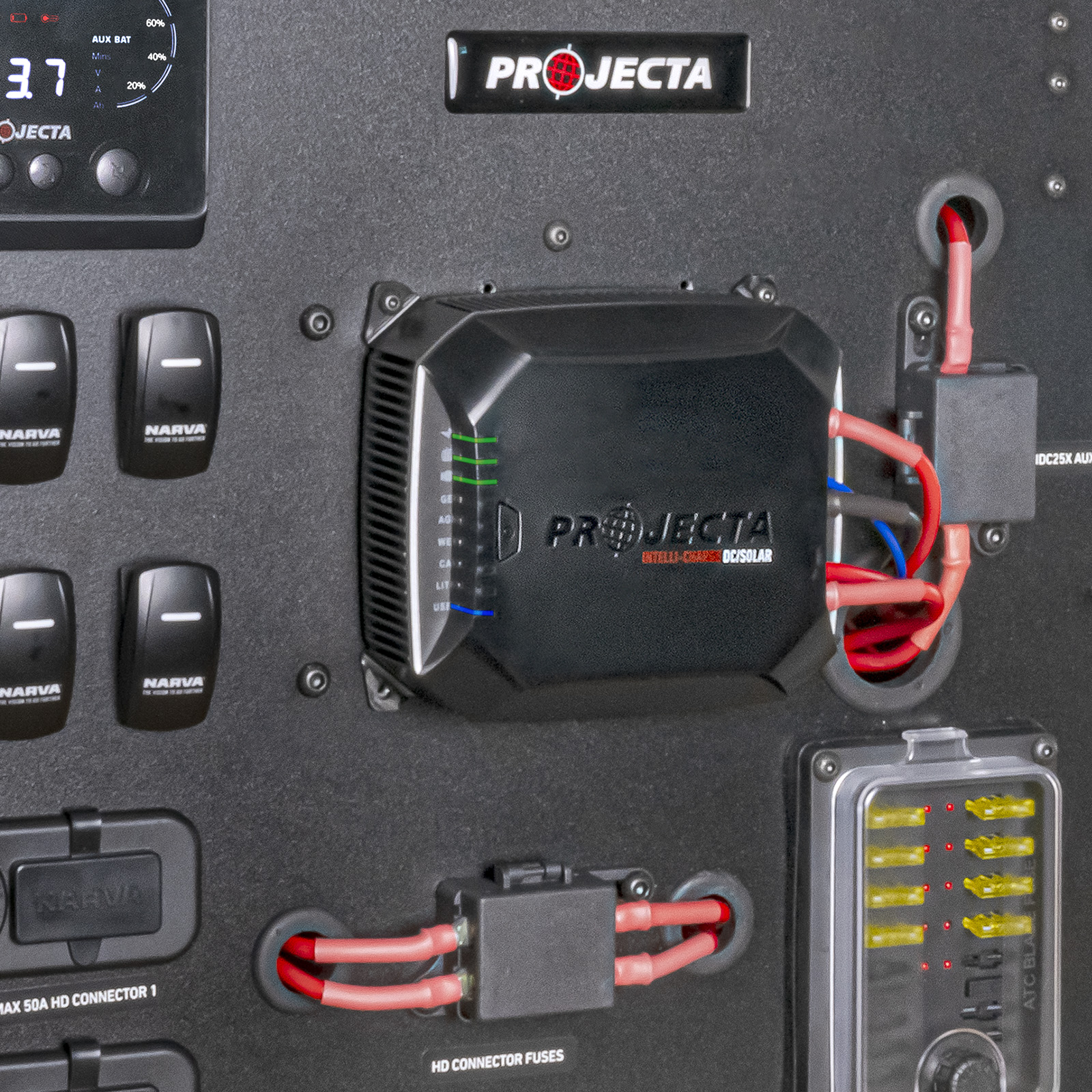

DC-DC CHARGER (IDC25X)
Providing a 3 or 5 stage charge simultaneously from both solar and alternator inputs, this dual battery management system is ideal for many applications

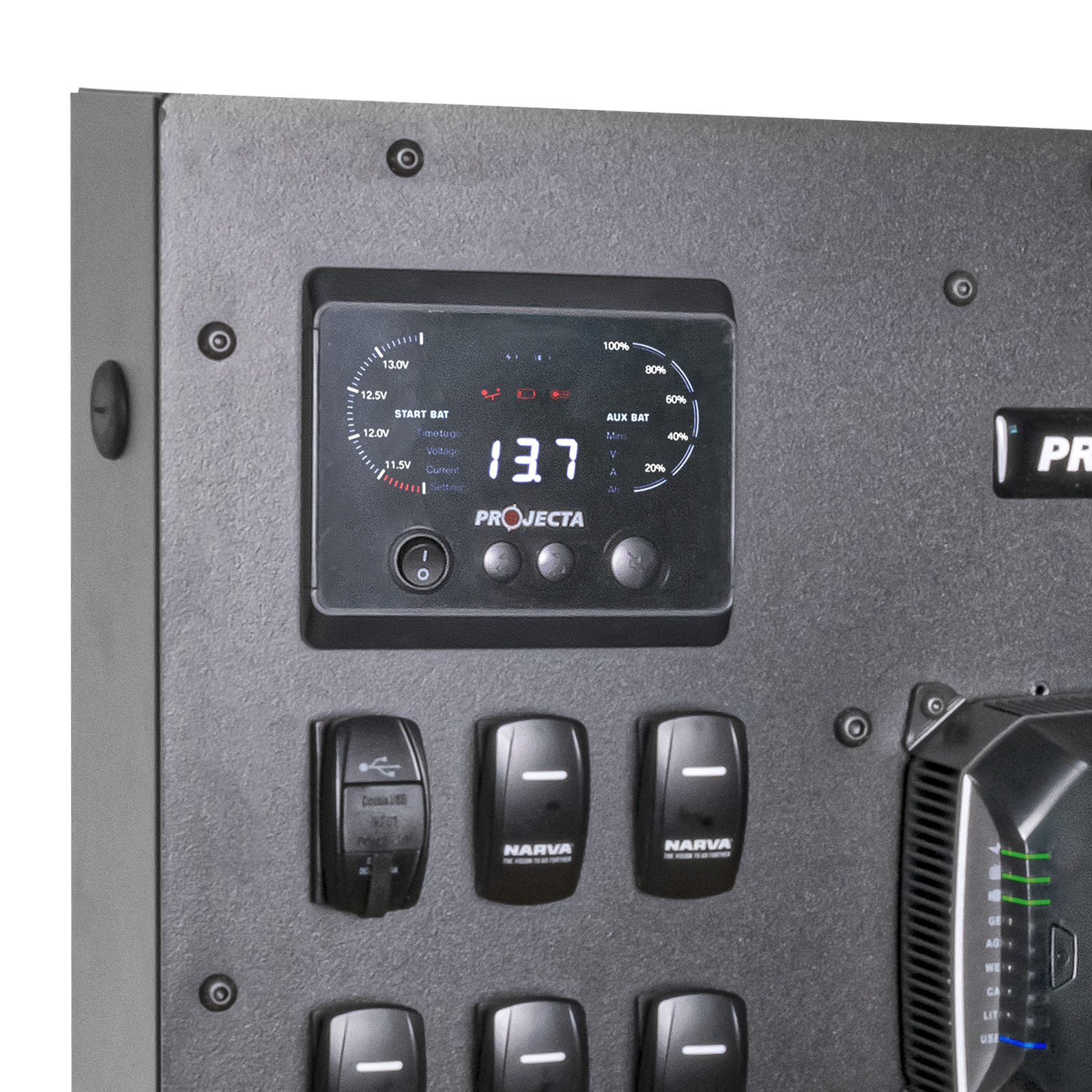

BATTERY MONITOR (BM500-BT)
An intelligent and compact battery meter ideal for monitoring SOC% and general status

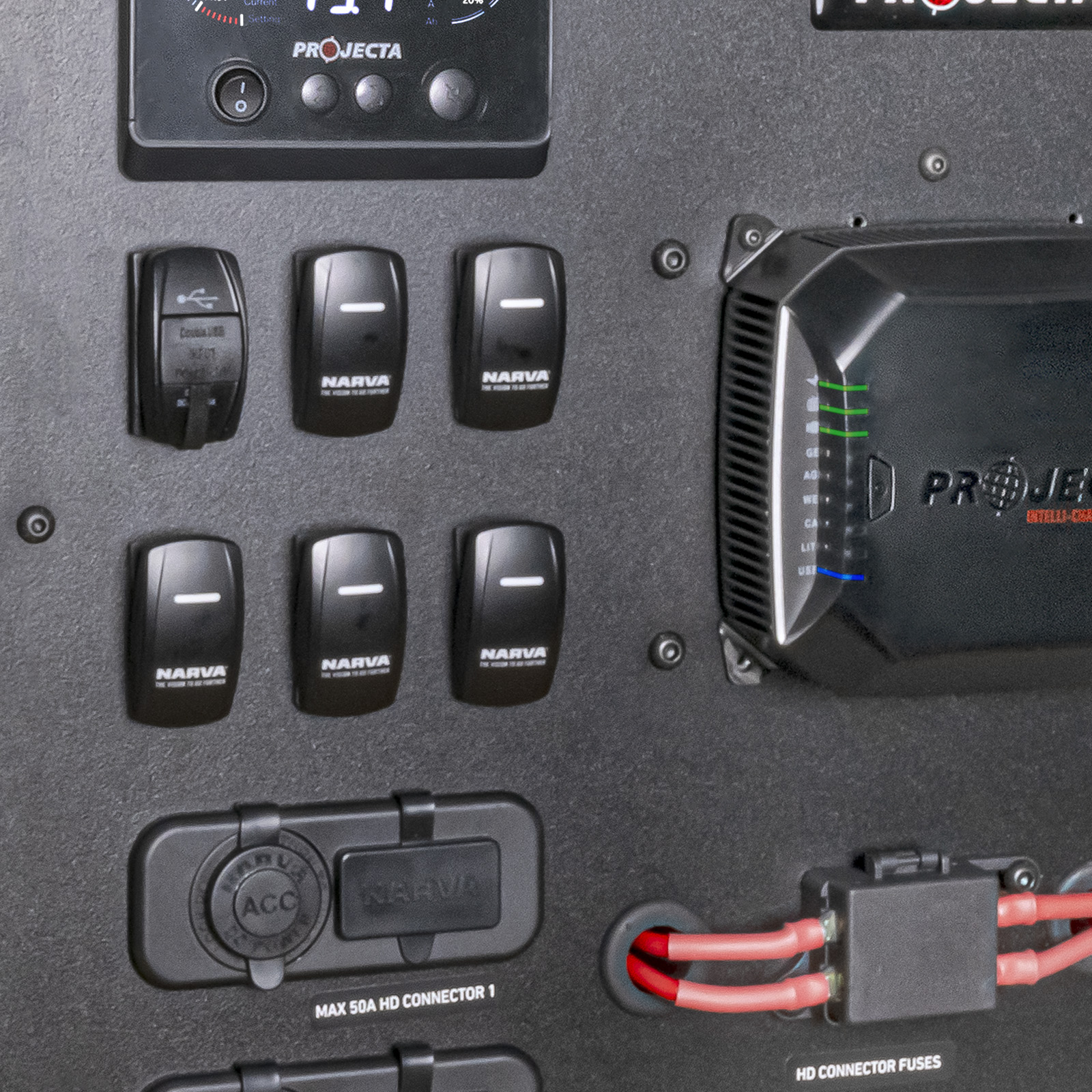

SOCKETS & SWITCH PANEL
Power and charge 12V devices with 3.1A USB sockets, a merit socket and an accessory socket. 5 switches are included to control all your connections

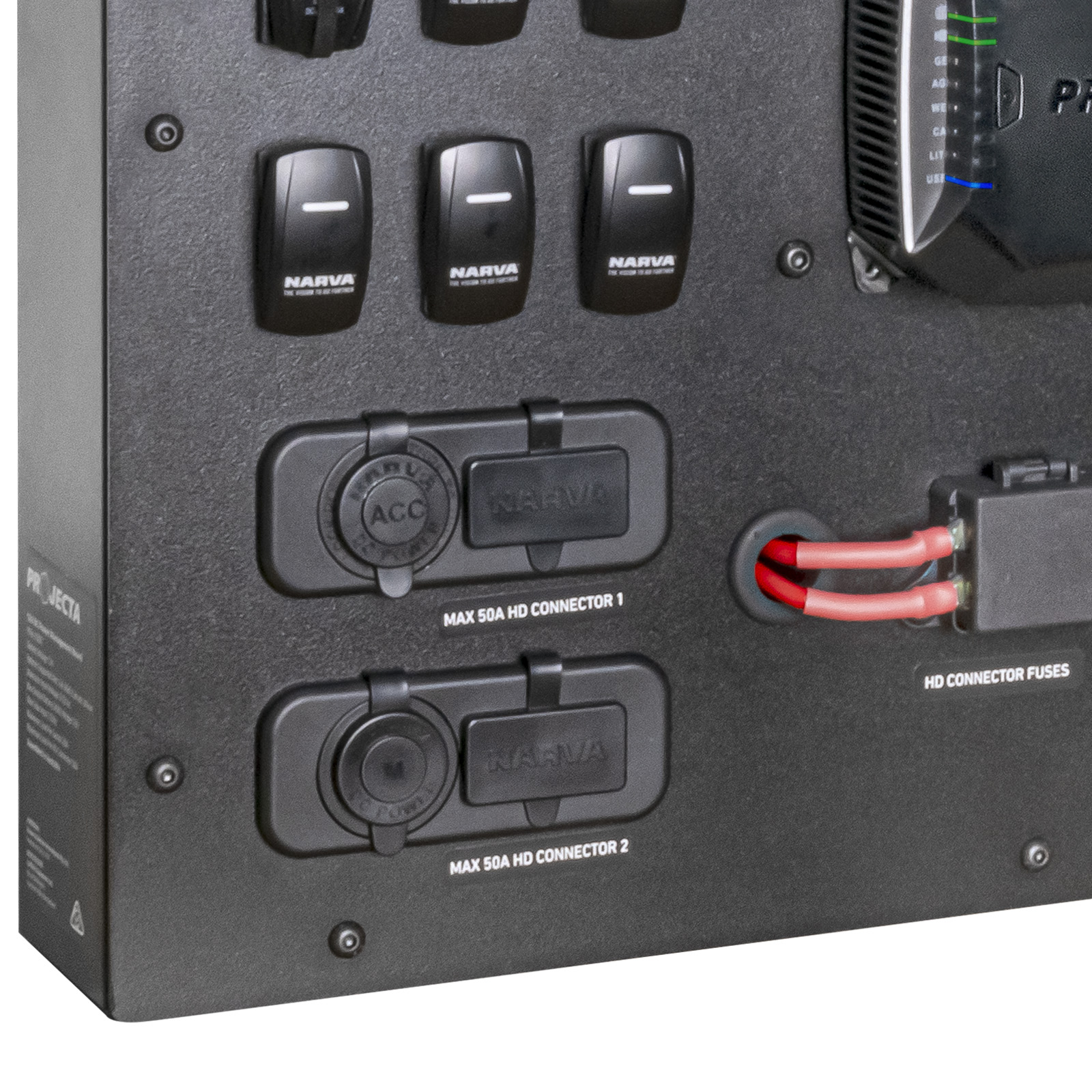

HEAVY DUTY INPUT/OUTPUT BATTERY CONNECTORS
50A Heavy duty connectors allow connection to appliances and to external solar

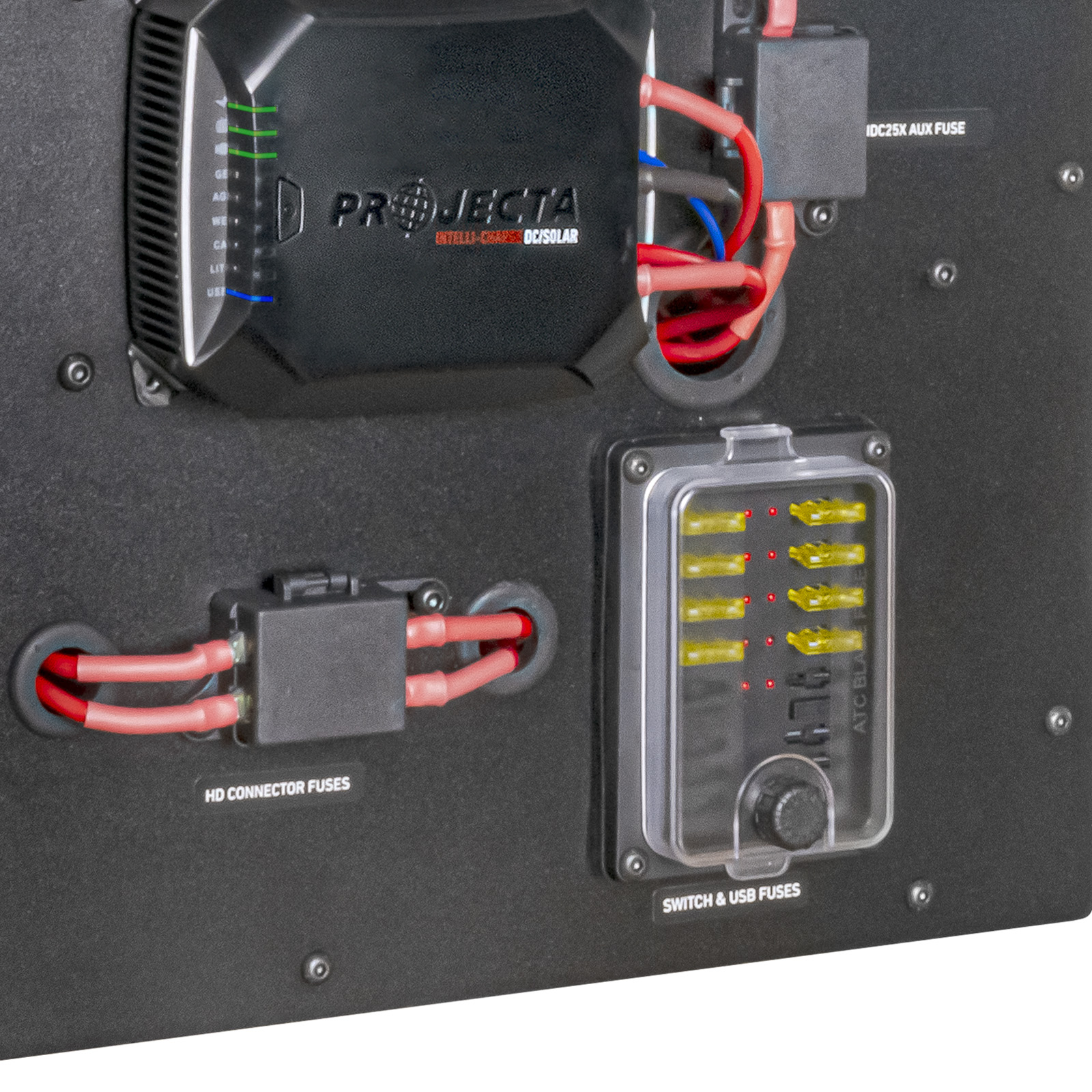

CIRCUIT PROTECTION

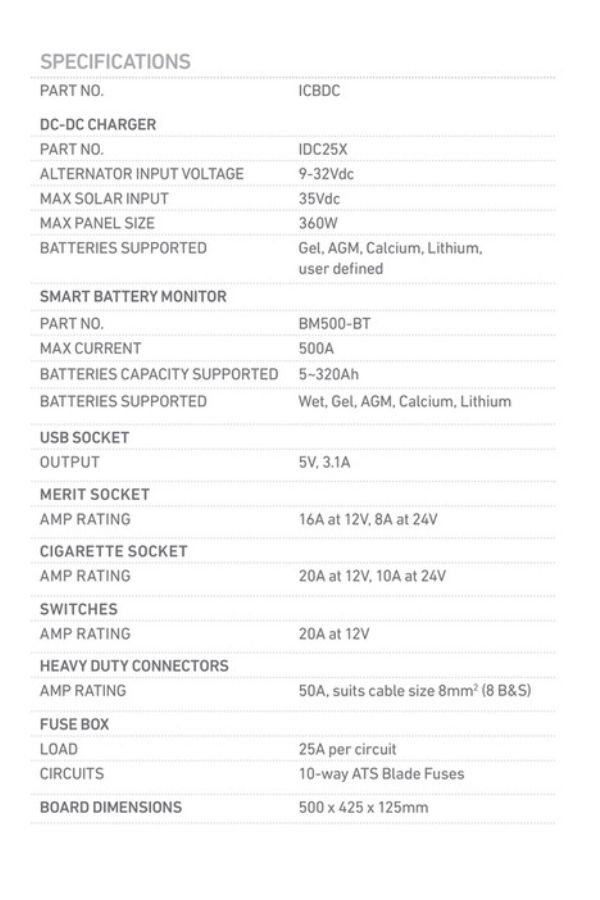

100A Heavy duty circuit breaker with manual reset and 10-way 25A max fuse box. Can be used to isolate the whole board from the batterySpecifications
Technical Information
Downloads
Get the latest information
12V DC Power Managment Board
Download Instructions Download Specification Sheet
