12V DC Power Management Board with 1500W Inverter | Projecta

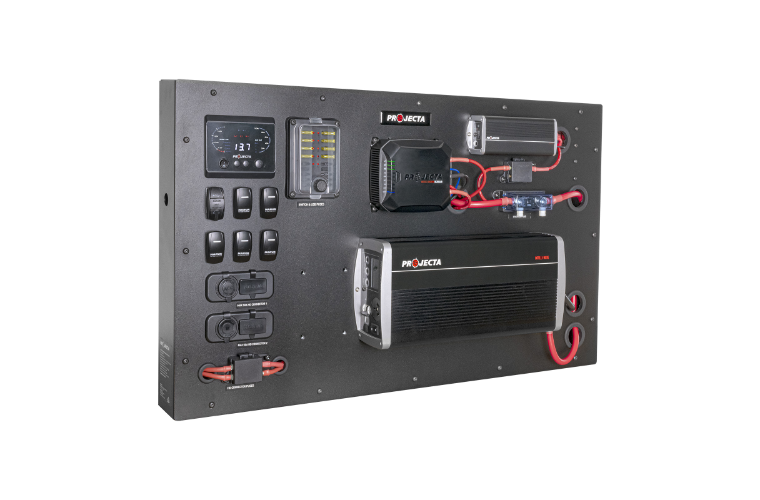

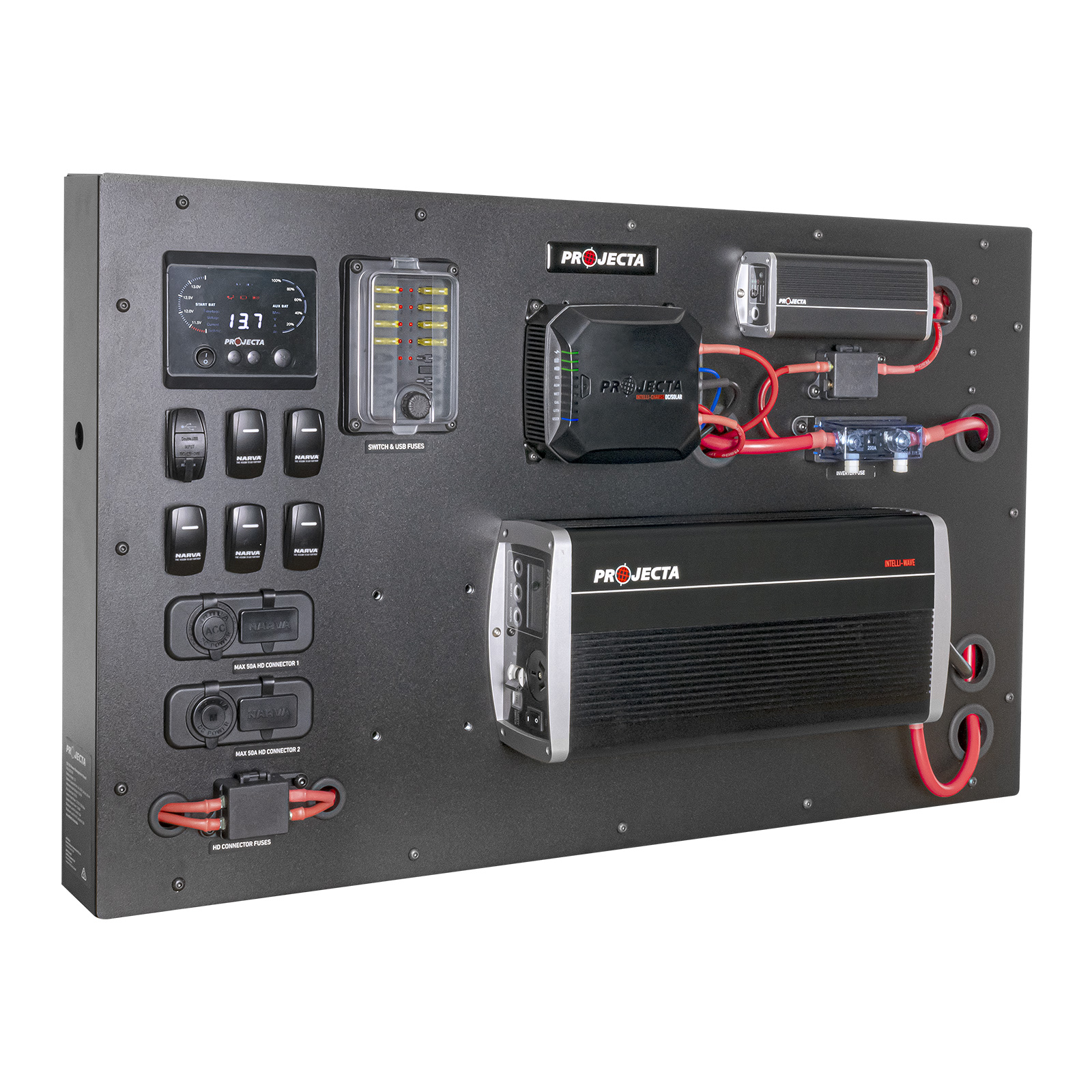

12V DC Power Management Board with 1500W Inverter

Part No. ICB1500
Utilising the latest premium ‘Intelli’ power management equipment, this board features the multi-chemistry 25Amp DC to DC dual battery charger, 1500W pure sine wave inverter and more.

This sophisticated system is ideal for ute canopies and RV applications. Pre-built, these all-in-one units enable quick and easy installation.

Where to Buy

Features

DC-DC CHARGER (IDC25X)

Providing a 3 or 5 stage charge simultaneously from both solar and alternator inputs, this dual battery management system is ideal for many applications

BATTERY MONITOR (BM500-BT)

An intelligent and compact battery meter ideal for monitoring SOC% and general status

SOCKETS & SWITCH PANEL

Power and charge 12V devices with 3.1A USB sockets, a merit socket and an accessory socket. 5 switches are included to control all your connections

1500W PURE SINE WAVE INVERTER (IP1500)

Converts 12V power to 240V to allow the use of devices such as laptops through to coffee machines whilst off grid

LOW VOLTAGE DISCONNECT

A robust and compact unit that protects expensive deep cycle batteries from damage caused by over-discharge

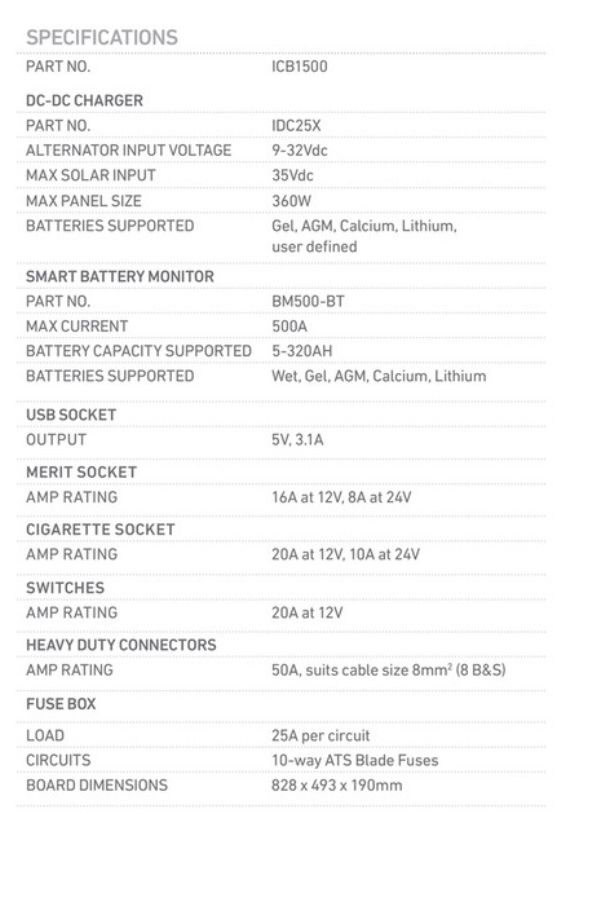

Specifications

Technical Information

Downloads

Get the latest information

12V DC Power Management Board with 1500W Inverter

Download Instructions Download Specification Sheet
